By David Adamson PhD – Data Scientist

When building or refreshing a data center, IT managers today are confronted with a huge range of products and specifications, making it difficult to accurately compare the performance of different products. In fact, ComputerWeekly reported yesterday that about two-thirds of storage professionals in large enterprises say they “can only assess I/O use on an ad-hoc basis and are reliant on their storage supplier to tell them, or simply have no access to this information.”

With data storage arrays, for example, IT buyers rely on performance benchmarks provided by vendors and analysts – but those benchmarks don’t always match the real-world workloads that companies run to support their businesses.

One key variable that influences performance (and thus performance benchmarking) is IO size. Specifically, when talking about how many IOPS (input/output operations per second) an array can achieve, test workloads tend towards smaller-sized IO (since arrays typically achieve more IOPS at smaller IO sizes). But when talking about how much throughput an array can achieve (in terms of megabytes per second), test workloads tend towards larger-sized IO, as arrays typically achieve more throughput at larger IO sizes.

In the real world, workloads perform a mixture of small and large IO operations, and, thus will be doing less IO than a purely small-IO workload, and less throughout than a purely large-IO workload. Even so, these benchmarks serve to map out the limits of what an array can achieve, both in terms of individual operations on one end and overall data flux on the other.

IOPS, Throughput, and IO Size

Some storage vendors assert that measuring the performance of a storage array at small IO sizes (e.g. 4KB or 8KB) is irrelevant to performance benchmarking, on the basis that real-world IO sizes are typically much larger (e.g. 32KB). From experience, we were skeptical of this claim, but to see for ourselves we turned to InfoSight.

InfoSight is a deep data analytics platform that ingests more than 30 million data points a day from each of thousands of Nimble Storage customer arrays. The InfoSight engine is the foundation of our customer portal, where customers can get a 360-degree view of their deployed arrays, and also serves our support organization by automatically generating and resolving more than 80 percent of customer-facing cases.

For this investigation, we tapped into InfoSight data to sum the number of host-requested IO operations at different IO sizes across thousands of Nimble Storage customer systems at once. IO was totaled from Feb 1st to Feb 28th 2015. Using that data, we determined what percentage of that total IO we observed that had sizes within the intervals shown below.

IO Size Histogram

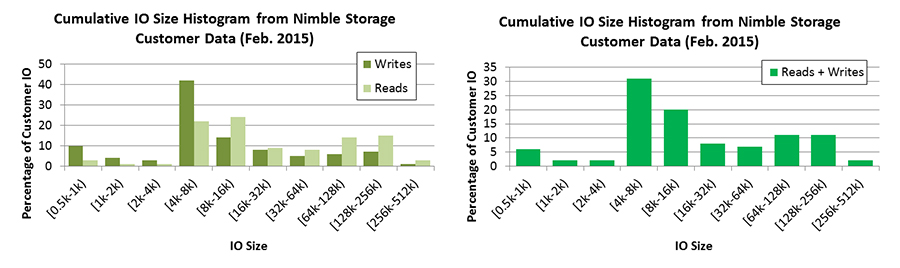

Figure 1: Histogram of IO size from customer arrays (Feb. 2015). Left: The cumulative counts of both reads and writes that fell within the size range shown are presented individually. Right: Each bar represents the percentage of total customer IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size).


From the histograms in Figure 1 we can see that:

  • >60% of writes are less than 8k,
  • >50% of reads are less than 16k, and
  • the distribution of IO sizes is bimodal (has two distinct peaks):
    1. >50% of IOs have sizes between 4k (inclusive) and 16k (exclusive)
    2. >20% of IOs have sizes between 64k (inclusive) and 256k (exclusive)
    3. only ~15% of IOs have sizes between 16k (inclusive) and 64k (exclusive)

According to this data, it is seems clearly incorrect to claim that it is only relevant to benchmark an array’s performance at 32k, or even only at high IO sizes in general (e.g. 32k+). Real-world workloads are performing a significant fraction of their IO below that level. This begs the question: why does this data seem to disagree with what others in the storage space have presented?

Examining Methodology

Based on the presented evidence that we at Nimble Storage have seen on production arrays reporting into InfoSight, the dubious claim others have made, that real world IO sizes are primarily around 32k is based purely upon an examination of array-level average IO size. The problem with looking only at averages is that doing so weights the larger IOs more and removes the subtleties of bimodality (i.e.: when the distribution of IO size includes many small IOs, many large IOs and fewer IOs of intermediate size).

As an example: If a workload performed 10 operations that were 4k in size and 3 operations that were 128k in size, the average overall IO size for that set of operations would be 32.6k. This is despite the fact that more than 75% of the IO performed was at the 4k size (and that none of the IOs performed were near 32k in size). To use an analogy: this average is like seeing a bunch of cyclists and a double-decker bus driving alone down the road and calling the average vehicle a minivan.

Moving past hypotheticals, we can do the same analysis that other vendors have done (using our same InfoSight data on the same set of customer IO) and achieve the same erroneous and easy-to-misinterpret result.

Averages Can Be Misleading

Looking at our own Nimble Storage customer data again (the same set of arrays over the same month-long time period as was used to create the distributions in Figure 1), we can aggregate our information as others have done to illustrate how that analysis distorts the actual picture. If instead of looking directly at the distribution of IO sizes that our customers performed, we instead (1) determined the average IO size for each customer array and then (2) counted the number of arrays (rather than the number of IOs) that fell into each size interval, we see this:

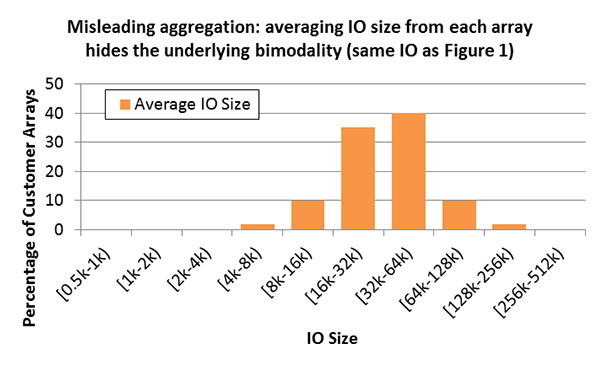

Figure 2: Histogram of the average IO size from individual customer arrays (Feb. 2015). Each bar represents the percentage of customer arrays where the average IO size fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size).

Figure 2: Histogram of the average IO size from individual customer arrays (Feb. 2015). Each bar represents the percentage of customer arrays where the average IO size fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size).


Looking only at this picture, we might incorrectly infer that ~75% of IO was being performed between 16k and 64k – (with ~12% below and ~12% above) but as we have seen from the histogram of actual IO sizes, only ~15% of the IO fell into that range (with ~61% below and ~24% above). Similarly, one might incorrectly conclude that IOs of 32k were more relevant for benchmarking than 4k. In fact, benchmarking at both high IO sizes (e.g. 64k+) and low IO sizes (e.g. ~4k) is important to accurately reflect the bulk of IO performed by real-world applications.

Most operations happen at low IO sizes (between 4k and 8k) and most throughput happens at high IO sizes (64k+). For this reason, benchmarking for IOPS (with low IO sizes) and for throughput (at high IO sizes) are both important for understanding an array’s performance because they trace out the opposite extremes of what an array can do. That is unlikely to change any time soon.

It is disheartening to see storage vendors publish data that is coerced to downplay their own platform’s weak points, particularly when this data so starkly misrepresents the underlying observations. Benchmarking with a distribution of IO that is representative of real world workloads is important. To do so requires appropriate measurement of what representative IO distributions really are, and passing off a distribution of array-level averages as a meaningful quantification of IO size is pure baloney.

Application-Level Information

To further validate that our aggregations in Figure 1 are representative of real-world application activity, we have taken the additional step of breaking down our user IO into common application categories (Figures 3 through 11). From these additional histograms, we can see that the patterns we identified in the application-agnostic IO size histograms in Figure 1 (namely that [1] a large proportion of IO is below 16k in size and that a small proportion of IO is between 16k and 64k in size and [2] the IO size histogram is bimodal) are borne out on an application-by-application basis as well.

For those interested in benchmarking arrays for particular applications or combinations thereof, the histograms below can provide important insight into what a realistic distribution of IO would look like. Furthermore, tools like vscsiStats can enable storage administrators to quantify the IO size distributions within their own environments.

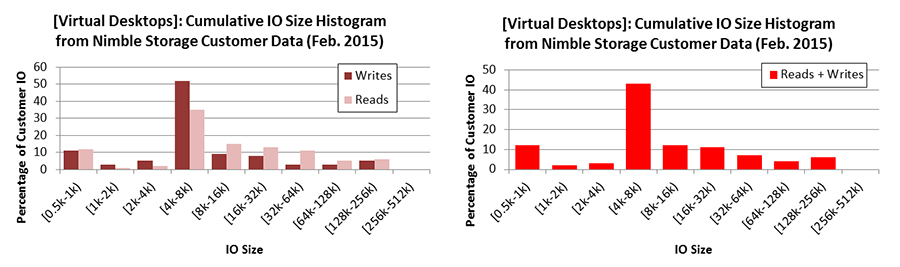

Figure 3: Histogram of IO size from customer VDI environments (Feb. 2015). Each bar represents the percentage of customer VDI IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size). In aggregate, VDI IO was 91% reads & 9% writes.

Figure 3: Histogram of IO size from customer VDI environments (Feb. 2015). Each bar represents the percentage of customer VDI IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size). In aggregate, VDI IO was 91% reads & 9% writes.

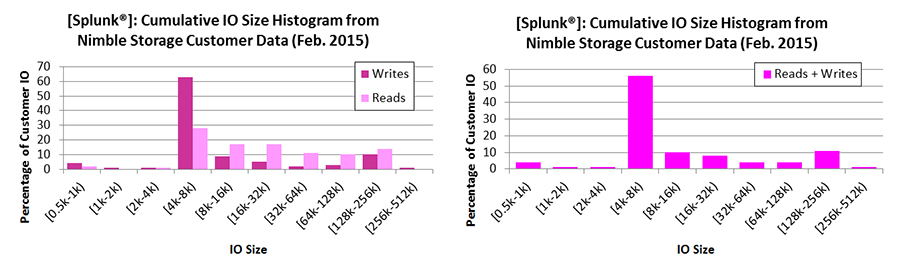

Figure 4: Histogram of IO size from customer Splunk environments (Feb. 2015). Each bar represents the percentage of customer Splunk IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval ‘[4k-8k)’ includes IO of 4k size but not of 8k size). In aggregate, Splunk IO was 21% reads & 79% writes.

Figure 4: Histogram of IO size from customer Splunk environments (Feb. 2015). Each bar represents the percentage of customer Splunk IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval ‘[4k-8k)’ includes IO of 4k size but not of 8k size). In aggregate, Splunk IO was 21% reads & 79% writes.

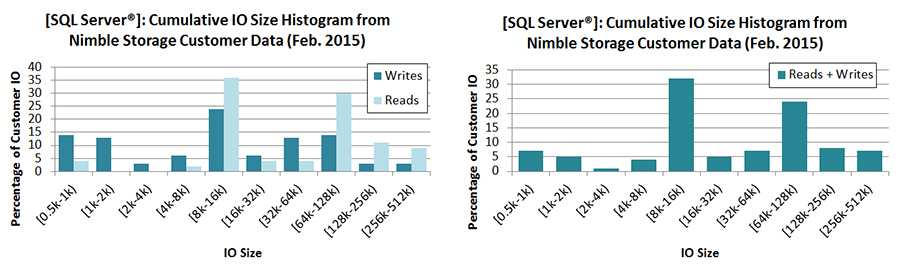

Figure 5: Histogram of IO size from customer SQL Server environments (Feb. 2015). Each bar represents the percentage of customer SQL Server IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size). In aggregate, SQL Server IO was 63% reads & 37% writes.

Figure 5: Histogram of IO size from customer SQL Server environments (Feb. 2015). Each bar represents the percentage of customer SQL Server IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size). In aggregate, SQL Server IO was 63% reads & 37% writes.

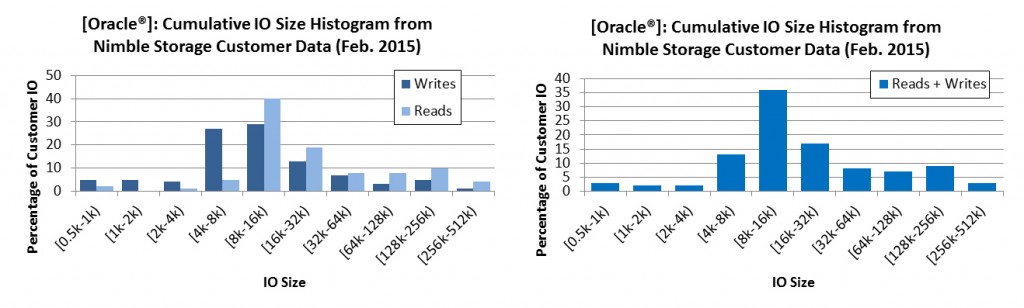

Figure 6: Histogram of IO size from customer Oracle environments (Feb. 2015). Each bar represents the percentage of customer Oracle IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size). In aggregate, Oracle IO was 65% reads & 35% writes.

Figure 6: Histogram of IO size from customer Oracle environments (Feb. 2015). Each bar represents the percentage of customer Oracle IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size). In aggregate, Oracle IO was 65% reads & 35% writes.

Figure 6: Histogram of IO size from customer Oracle environments (Feb. 2015). Each bar represents the percentage of customer Oracle IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size). In aggregate, Oracle IO was 65% reads & 35% writes.

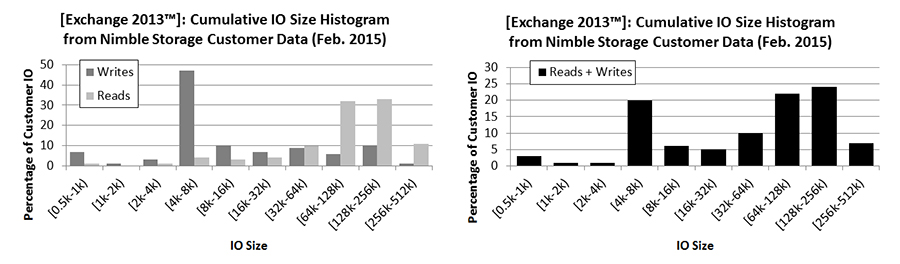

Figure 7: Histogram of IO size from customer Exchange 2013 environments (Feb. 2015). Each bar represents the percentage of customer Exchange 2013 IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size). In aggregate, Exchange 2013 IO was 63% reads & 37% writes.

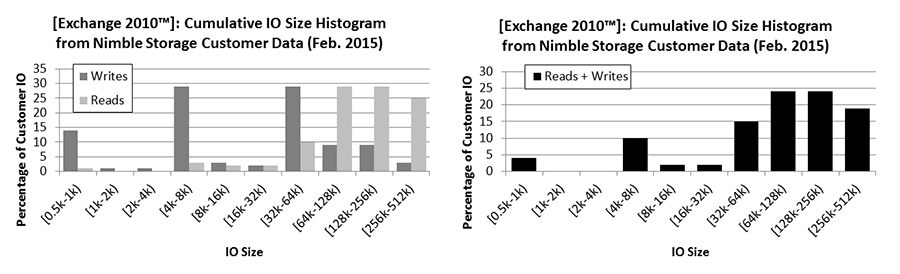

Figure 8: Histogram of IO size from customer Exchange 2010 environments (Feb. 2015). Each bar represents the percentage of customer Exchange 2010 IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size). In aggregate, Exchange 2010 IO was 75% reads & 25% writes.

Figure 8: Histogram of IO size from customer Exchange 2010 environments (Feb. 2015). Each bar represents the percentage of customer Exchange 2010 IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size). In aggregate, Exchange 2010 IO was 75% reads & 25% writes.

Figure 9: Histogram of IO size from customer Exchange 2007 environments (Feb. 2015). Each bar represents the percentage of customer Exchange 2007 IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size). In aggregate, Exchange 2007 IO was 92% reads & 8% writes.

Figure 9: Histogram of IO size from customer Exchange 2007 environments (Feb. 2015). Each bar represents the percentage of customer Exchange 2007 IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size). In aggregate, Exchange 2007 IO was 92% reads & 8% writes.

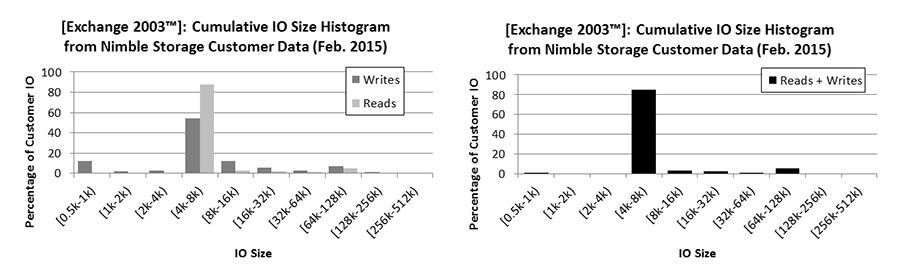

Figure 10: Histogram of IO size from customer Exchange 2003 environments (Feb. 2015). Each bar represents the percentage of customer Exchange 2003 IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size). In aggregate, Exchange 2003 IO was 91% reads & 9% writes.

Figure 10: Histogram of IO size from customer Exchange 2003 environments (Feb. 2015). Each bar represents the percentage of customer Exchange 2003 IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval [4k-8k) includes IO of 4k size but not of 8k size). In aggregate, Exchange 2003 IO was 91% reads & 9% writes.

Figure 11: Histogram of IO size from customer File Server environments (Feb. 2015). Each bar represents the percentage of customer File Server IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval ‘[4k-8k)’ includes IO of 4k size but not of 8k size). In aggregate, File Server IO was 79% reads & 21% writes.

Figure 11: Histogram of IO size from customer File Server environments (Feb. 2015). Each bar represents the percentage of customer File Server IO that fell within the size range shown. Each IO size interval is closed on the left and open on the right (e.g. the interval ‘[4k-8k)’ includes IO of 4k size but not of 8k size). In aggregate, File Server IO was 79% reads & 21% writes.

Written by:
David Adamson PhD
